Tire Crushing Machine Double Shaft Scrap Metal Shredder Machine Double Shaft Shredder Machine

  • >=1 Sets
    $21,500.00
Model Number:
YX-1200
Shipping:
Support Sea freight · Land freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Max.Production Capacity (kg/h):
60000
Production Capacity (kg/h):
6000 - 8000 kg/h
Brand Name:
YUXI
Dimension(L*W*H):
3200*2000*1900
Power (kW):
90
Weight (T):
9.5
Warranty:
2 years
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
Applicable Industries:
Building Material Shops, Manufacturing Plant
Key Selling Points:
Multifunctional
After Warranty Service:
Video technical support, Online support, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
2 years
Core Components:
Bearing, Motor, Pressure vessel
Spindle speed:
18-35 r/min
Number of cutterpan:
46
Diameter cutterpan:
550
Broken size:
3-10 cm
Condition:
New
Use:
Waste Plastic Crusher
Plastic Type:
PVC
Shaft Design:
Double
Voltage:
380V
Certification:
CE ISO
Supply Ability
Supply Ability:
50 Set/Sets per Month plastic shredder machine
Packaging & Delivery
Packaging Details
Wooden Package.
Port
Any Port of China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Video Description
Product Description

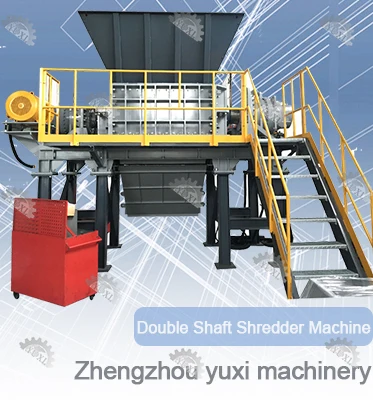

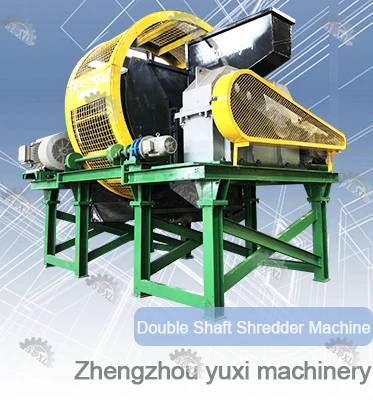

Introduction of Double Shaft Shredder

Double shaft shredder is designed large torque shear equipment in order to break large hard materials.
The bearing seat adopts the counter type, is easy to disassemble and change cutter, and is suitable for tearing large, extra thick and hard materials.
Technical Parameter
The product model is for reference only. For more information about product parameters, please contact us.
Model
YX-600
YX-800
YX-1000
YX-1200
Spindle power
4-15*2KW
4-22*2KW
4-37*2KW
4-45*2KW
Spindle speed
18-20r/min
18-35r/min
18-35r/min
18-35r/min
Capacity
2-3t/h
3-5t/h
5-8t/h
6-10t/h
Number of  cutterpan
26
28
33
40
Diameter cutterpan
360
360
360
500
Broken size
3-10cm
3-10cm
3-10cm
3-10cm
Hopper size
820*900mm
900*1000mm
1200*1000mm
1400*1000mm
Dimensions(mm)
2600*2000*1900
2800*2000*1900
3000*2000*1900
3200*2000*1900
Weight
2.5t
3.6t
5.7t
9.5t
Application

Application of Shredder Machine

The metal shredder machine is widely used to tear up the bundles of material containing foreign matter or high hardness materials. The follow materials for your reference.
1.All kinds of hollow containers: plastic beverage cans, plastic barrels, drums, packing box, packing barrel; 2.Waste household appliances: TV, washing machine, refrigerator shell; 3.Pipe: large pipe, pipe fittings, PE pipe; 4.Waste template: wooden pallets, plastic pallets, forklift support Board; 5.Scrap tires: car tires, truck tires, engineering tires; 6.Scrap metal: automotive shell, aluminum alloy, scrap aluminum castings, engines Shell, aluminum and steel plates of thickness below 5mm; 7.Food waste, domestic waste, animal carcasses, TDF derivatives, medical waste, Biological straw, garden garbage; 8.Rubber head material, paper mill rope.
Size of Feeding Hopper can be adjusted according to the customer's maximum size of materials
Detailed Images
Main Form
Model of reducer
JZQ650*2 (Hardened teeth surface gear)
Electric motor manufacturer
Kaifeng copper electric motor
Machine frame
120*120 mm Square tube-type steel welded

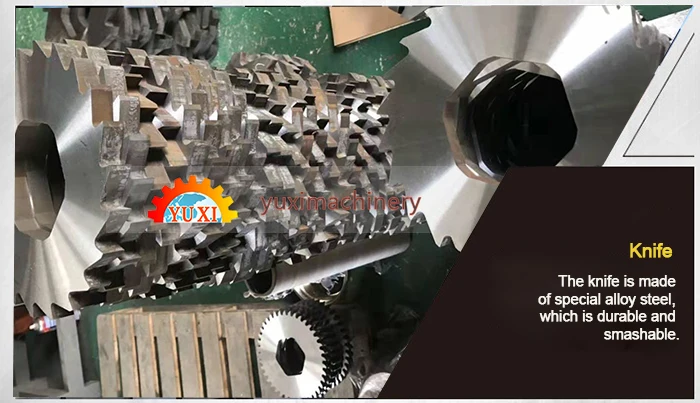

Blade
Material of blade
SKD11
Blade hardness range
Hardness > 62 HRC

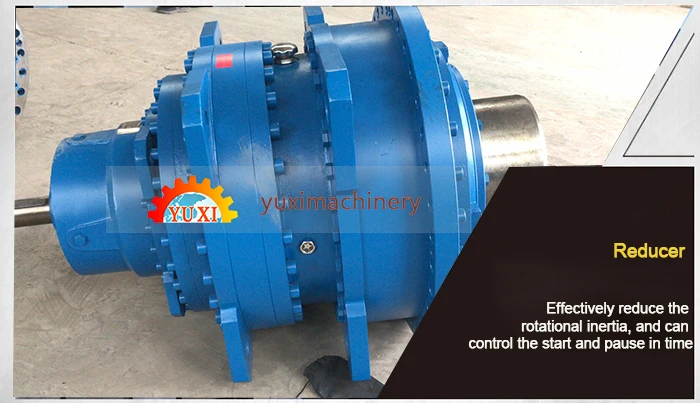

Reducer
The internal gear of the planetary reducer adopts 20CrMnTi carburizing and quenching and has the characteristics of small volume, light weight, high bearing capacity, long service life, stable operation, low noise, large output torque, large speed ratio, high efficiency and safe performance
Blade
Available according to customer requirements
SKD11 high hardness, high wear-resistant eutectic carbide uniform, good toughness, not easy to crack, hardness >62-65HRC after quenching

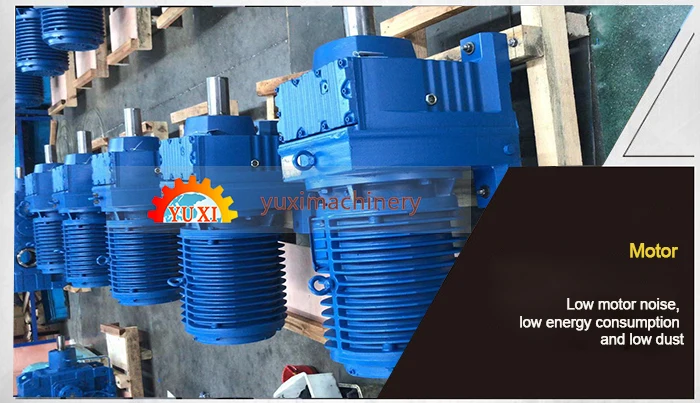

Motor
Motor use Kaifeng copper electric motor
Low resistivity High corrosion resistance Longer life than aluminum copper under high temperature operation

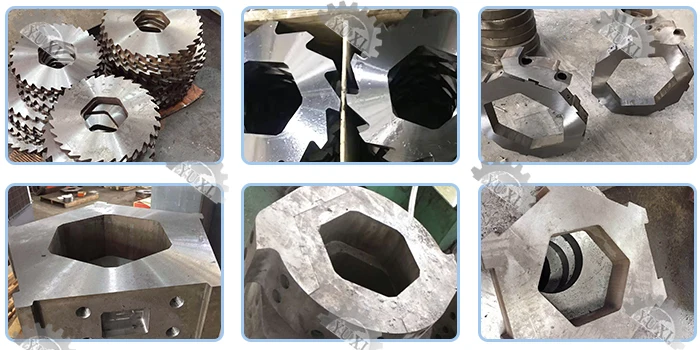

Different Blades
Available according to customer requirements
The blade produced by our factory are for your reference.

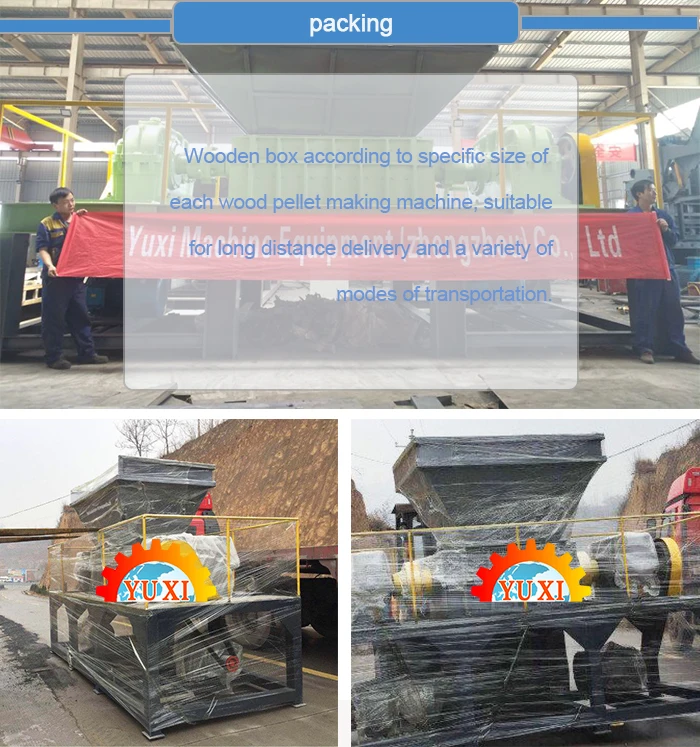

Packing & Delivery

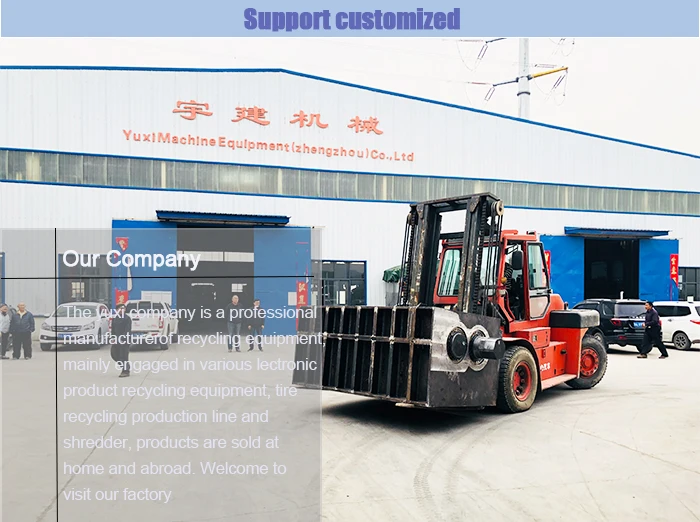

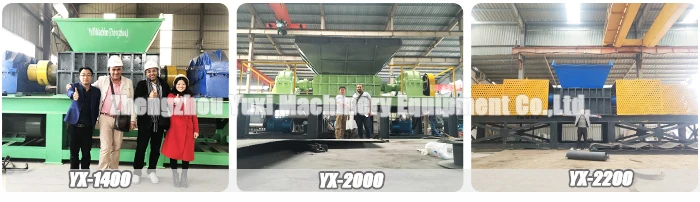

Project case
Many trading companies in China come to our company to inspect and purchase our machines. Our company has exported shredders to more than 50 countries around the world. Different countries have different requirements for machines. We can make machines according to customer requirements. Welcome to visit our factory.
